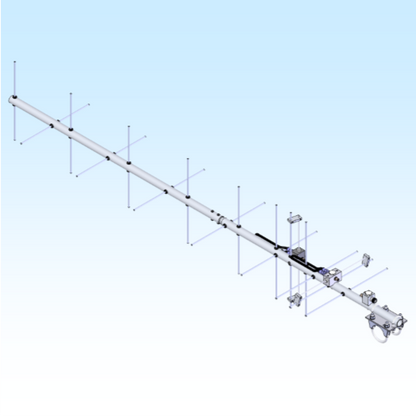

The 436CP16 is a light weight, circularly polarized antenna optimized for Low Earth Orbit (LEO) satellite communications or other applications where a small circular polarized antenna is required. Optimum match and gain are between 432 & 440 MHz for the satellite band. Rear mounted for easy coaxial cable routing. A preamp can be mounted close to the antenna for almost no coax loss before the preamp, maximizing your receive performance. Computer design techniques help keep spurious side lobes low down for optimum signal to noise ratios. This antenna features the same CNC machined, O-ring and silicone-gel sealed, driven element assemblies common to all M2 Yagi antennas. This insures years of trouble free performance regardless ofweather.
SPECIFICATIONS:
Model ......................................... 436CP16
Frequency Range ......................... 432 To 438 MHz
*Gain ......................................... 13.3 dBic
Front to back .............................. 15 dB Typical
Beamwidth ................................. 42° Circular
Feed type ................................... Folded Dipole
Feed Impedance. ........................ 50 Ohms Unbalanced
Maximum VSWR ......................... 1.5:1
Input Connector .......................... “N” Female
Power Handling .......................... 1 kW
Boom Length / Dia ...................... 65-3/4” / 1”
Maximum Element Length ........... 13-3/4”
Turning Radius: .......................... 64”
Stacking Distance ....................... 36”
Mast Size .................................. 1-1/2” to 2” Nom.
Wind area / Survival ................... 0.4 Sq. Ft. / 100MPH
Weight / Ship Wt. ....................... 4 Lbs. / 7 Lbs.

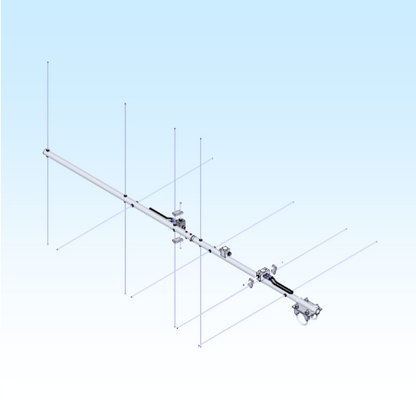

The 2MCP8A is a light weight, circularly polarized antenna optimized for Low Earth Orbit (LEO) satellite communications or other applications where a small circular polarized antenna is required. Optimum match and gain are between 143 & 148MHz for the satellite band. Rear mounted for easy coaxial cable routing. A preamp can be mounted close to the antenna for almost no coax loss before the preamp, maximizing your receive performance. Computer design techniques help keep spurious side lobes low down for optimum signal to noise ratios. This antenna features the same CNC machined, O-ring and silicone-gel sealed, driven element assemblies common to all M2 Yagi antennas. This insures years of trouble free performance regardless of weather.
SPECIFICATIONS:
Model ........................................ 2MCP8A
Frequency Range ...................... 143 To 147 MHz
*Gain .......................................... 9.2 dBic
Front to back .............................. 16 dB Typical
Beamwidth ............................... 60° Circular
Elipticity...................................... >3dB
Feed type ................................... “T” Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ....................... 1.3:1 Typical
Input Connector ..........................“N” Female
Power Handling ..........................1.5 kW
Boom Length / Dia ......................64” / 1”
Maximum Element Length ..........41-1/4”
Turning Radius: ..........................64”
Stacking Distance .......................63” High & 63” Wide
Mast Size ....................................1-1/2” to 2” Nom.
Wind area / Survival ...................0.5 Sq. Ft. / 100MPH
Weight / Ship Wt. ........................4 Lbs. / 7 Lbs.
