M2八木天线

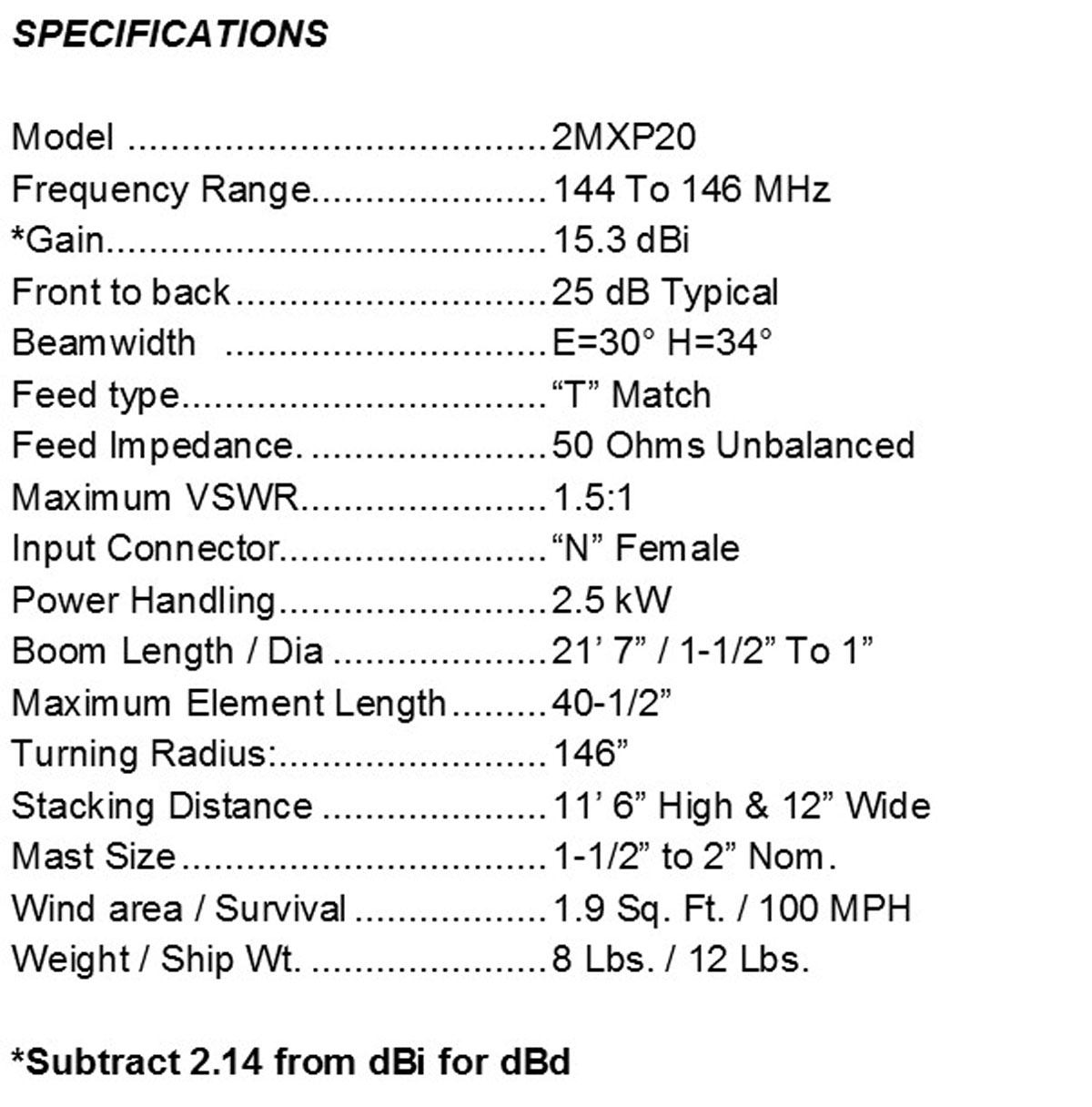

M2八木天线2MXP20,144-146 MHZ,15.3dBi
发布时间：2022-12-16 发布人：Flyer 浏览次数：
该2MXP20双极化八木天线是为满足地球与月球之间通信而设计。它具有非常好的G/T值，旁瓣和后瓣都很低，并且已针对多个天线堆叠进行了优化设计。该天线的显著之处在于四个天线的叠加增益超过6dB。即使使用单个水平/垂直中继，您也可以获得比大型线性阵列更好的月球回波。
如果配备额外的继电器开关，就可以提供4种不同类型的信号。特殊极性和法拉第旋转的损耗几乎消失。EME可靠性接近100%。
M2的新型2MXP20天线、功率分配器和相位线（使用Times的新型轻质低损耗LMR400和/或LMR600电缆），再加上“T”支架套件、玻璃纤维H型框架组件、OR2800P方位旋转器和我们的新型MT-1000升降电机，为新一代高性能EME阵列提供了基础。
This dual polarized yagi was computer designed for the serious Moonbouncer. The very good G/T is a result of low side and back lobes and the design has been optimized for stacking. This antenna is remarkable in that the stacking gain for four antennas exceeds 6 dB. Even using a single Horizontal/Vertical relay, you have a moonbounce package that can outperform larger, linear arrays. Additional relay switching providing 4 different types of signals. Losses from special polarity and Faraday rotation virtually disappear. EME reliability approaches 100%. M2's new 2MXP20 antennas, power dividers and phasing lines (using Times' new light-weight, low-loss LMR400 and/or LMR600 cable) coupled with ‘T’ brace kits, fiberglass H-frame packages, OR2800P Azimuth Rotator, and our New MT-1000 Elevation Motor provide the building blocks for a whole new generation of high performance EME arrays.
